Trainz Instructions

Using the RailDriver with Trainz

Software

Currently Supported: Windows XP, Windows Vista (32/64), Windows 7 (32/64), Windows 8 (32/64)

Downloads: Installation Package v.1.4.1.6 (1.5 MB) (for Trainz 2006, Trainz 2009, Trainz 2010, and Trainz 12 without SP1); Installation Package v.1.4.1.9 (1.5 MB) (for Trainz 12 SP1)

Contains:

    • Trainz Driver
    • RailDriver™ Cab Maker
    • RailDriver™ Calibration

By downloading this software, you agree to our Terms & Conditions.

Installation

  1. Install Trainz.
  2. Download and install rdts2009.exe (v.1.4.1.6), unless you have Trainz 12 SP1. If you have Trainz 12 SP1, download rdts12sp1.exe (v.1.4.1.9) instead.

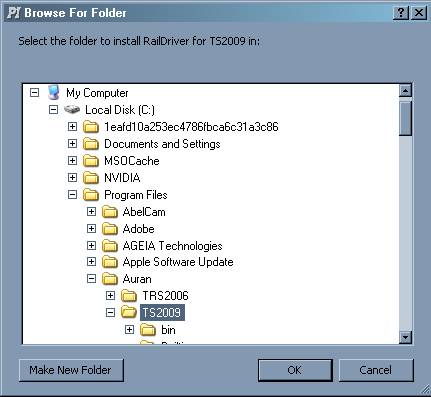

  3. After selecting the language and agreeing with the EULA, you'll get to a screen with a blank line and a "Browse" button. Click on "Browse" and navigate to where your version of Trainz is installed:
trainz TS2009 setup

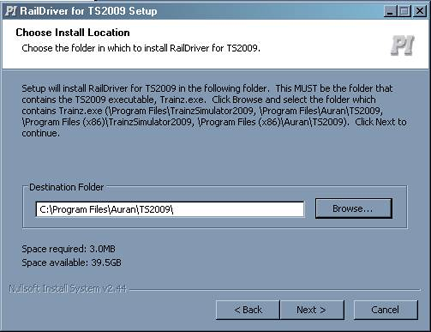

This location yields the following:

RailDriver for TS2009

Note: It is possible for your installation to be in a different location. This is just an example. Please be sure you know where exactly you have installed Trainz, including whether or not it is installed in Program Files (32-bit system) or Program Files (x86) (64-bit system).

4. Click on "Next," then on "Install." Once the installer is finished the Calibration Tool should run. Just follow the instructions to get your RailDriver calibrated.

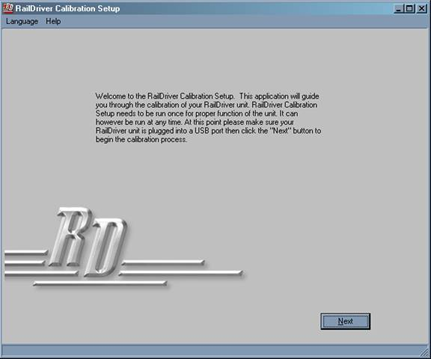

RailDriver calibration screen

5. Start up Trainz. When you've selected a route and it loads, choose "Cab Control" and your RailDriver display should switch from rd to 0.

6. Drive your train!

Common Problems

The RailDriver controller does not function in Trainz, or the status window on the controller just shows "rd."

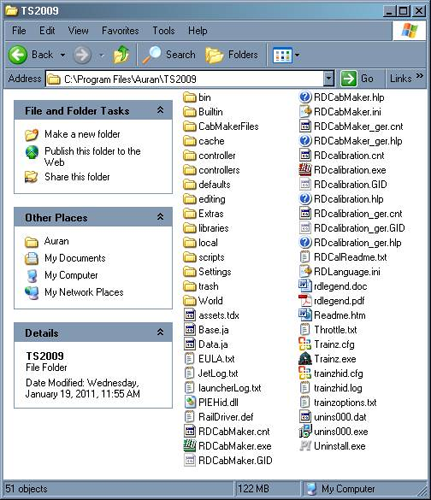

This means the RailDriver software hasn’t been installed into the correct location.  When installed correctly, your folder for Trainz should look like the following:

TS 2009

If you donít have all of these folders and folders in the same location, run rdts2009u.exe again and double check your installation path.

I have Trainz 12 SP1 and some of the controls on the RailDriver do not work.

Please update your installation to the latest version intended specifically for Trainz 12 SP1.

No matter how many times I calibrate, the levers don't match the information in Trainz.

First, check in the Ďcontrollerí folder for the Modern.rdm file, and the Ďcontrollersí folder for ModernCalibration.rdm. Both of these files should be in their respective locations, and the Date Modified lines should match. If these 2 dates do not match, you will need to make a copy of the ModernCalibration.rdm file and rename it to Modern.rdm and place this in the Ďcontrollerí folder. This problem is most common when Trainz is not installed on the default C:\ Drive and on some Windows 7 setups.

All of the levers work well, but Iím having a hard time getting the throttle to reach 8.

To fix this, you will need to run RDcalibration.exe again, but when calibrating the throttle and you reach the very top/bottom for calibration, move the lever away from the end just a bit. This will give you a bigger window for the 8th throttle notch instead of a single point.

In Trainz 2009 or 2010, the reverser and throttle levers donít work when driving a steam engine, but the brakes and buttons function.

This is a known issue and is on our list of projects to revisit. There was a change to the commands for these levers shortly before Trainz 2009 was released and we already had our software finished at that point. We will be looking into this and updating the installer again in the near future.

When running a train in DCC mode, the RailDriver isnít as accurate as using a mouse.

The RailDriver wasnít designed with DCC mode in mind. While it does work in DCC mode, it functions a bit differently than mouse control and takes some getting used to.

Need Help?

Our tech support department would be glad to answer any questions you may have! Just call us at 1-800-628-3185 ex. 19 (Monday through Friday, 8AM - 5PM eastern time), or e-mail us at tech@piengineering.com.
